High Quality Paper UV Coating Machine

CS36-HA

UV Coating Trading Firm MDWhether you’re into printing, packaging, or manufacturing this is the unit of choice that provides the industry with the most dynamic system to tackle nearly any application requirement.

The CS-36HA is an offline, sheet-fed UV coating system that produces a high-quality finish on a wide variety of inks, toners, and substrates up to 36”s wide.  This low-maintenance, easy to use system allows for effective coating of material at a very low average cost.

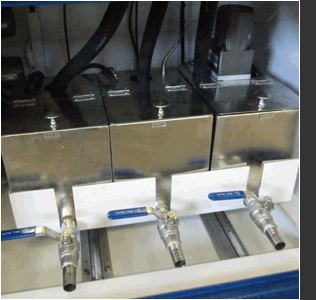

Our “adjustable metering roller” and “independent roller speed control” allows the operator to adjust coating weight and surface smoothness with easy. The user friendly 3-tank coating and wash system provides for an easy switch from one coating finish to another in minutes. This unit also includes an IR lamp heating system-ideal for coating adhesion for wax-infused toners and dual-doctor blade scraper system. With access doors on each side of the machine, operation and maintenance is a breeze.

The CS-36HA is also height-adjustable, ideal for protecting and finishing rigid substrates up to .75” such as metal, styrene, coroplast, corrugated material, foam board, and other rigid substrates.


Features

  • Touch Screen Control
  • Low Level Coating Alarm
  • 3 tank coating and wash system
  • Independent roller speed control
  • Retractable media catch tray
  • Filtered coating recirculation system
  • Duel doctor blade system
  • IR pre-heat for increased coating adhesion to wax-infused toners

Compatibility

  • Digital inks (Water based, toner, solvent, UV, latex, etc.) See uv13
  • Lithopress
  • Offset
  • Screen
  • Photo

Specifications

  • Power: 208-220 1ph 60hz 50amps
  • Format: 36” x any length
  • Speed: 55 Feet per minute
  • Media: 100lb text (paper) to 1” rigid
  • Dimensions of Unit: 60” x 65 ” x 47”
  • Weight: 1650 lbs.

AUV LogoAll Spectra-Coat CS Series Coaters are Official American Ultraviolet Corporation Products
