BRILLIANT COATING SOLUTIONS UV COATING

Select a UV Coating Equiptment Model (size) from our list below to learn more:

CS13 l CS24 l CS24-HA l CS36-HA l UV60/80

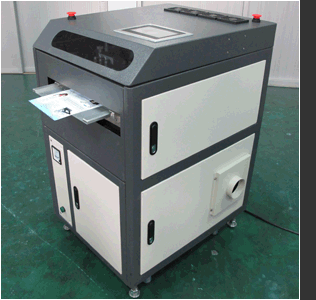

Are you a short run printer, looking to maximize your workspace while finishing your prints in house? Our CS13 is your solution.  The CS13 is a low maintenance, easy to use, small compact off-line sheet-fed UV coating system that produces a high quality finish on a wide variety of inks, toners, and media.

Our CS13 comes equip with all of the advantages of our larger coating equipment, including “independent roller speed control”, touch screen controls, 3 tank/pump peristaltic pump design with anti-cross contamination sensor, IR lamp heating system-ideal for coating adhesion for wax-infused toners and dual-doctor blade scraper system. With access doors on each side of the machine, operation and maintenance is a breeze.

The CS13 coating technology is ideal for protecting and enhancing output materials from lithopress, offset, digital, screen, and photo printers.  Great for photo books, decals, brochures, greeting cards, mailers, and more!

Features

• Touch Screen Control
• Low Level Coating Alarm
• 3 tank coating and wash system
• Independent roller speed control
• Retractable media catch tray
• Filtered coating recirculation system
• Duel doctor blade system
• IR pre-heat for increased coating adhesion to wax-infused toners

Compatibility

• Photo
• Offset
• Digital
• Screen

Specifications

• Power: 208-220 1ph 60hz 25amps
• Format: 13” x any length
• Speed: 55 Feet per minute
• Media: 100lb text to .75” rigid
• Dimensions of Unit: 31.5” x 25.5” x 43”
• Weight: 580 lbs

All Spectra-Coat CS Series Coaters are Official American Ultraviolet Corporation Products
